Highlights of the series .

Experimental High Speed Machine--GZP300 Series

All parts in contact with the product are made of stainless steel for fast and efficient cleaning.

i Series - Smart Interface
Modular design.

Modularized design of the whole machine, easy to repair and maintain. Turntable module and upper and lower track module can be disassembled online.

Modular design.

i Series - Smart Interface

Scope of application

Suitable for research and small batch production of tablets in various industries.

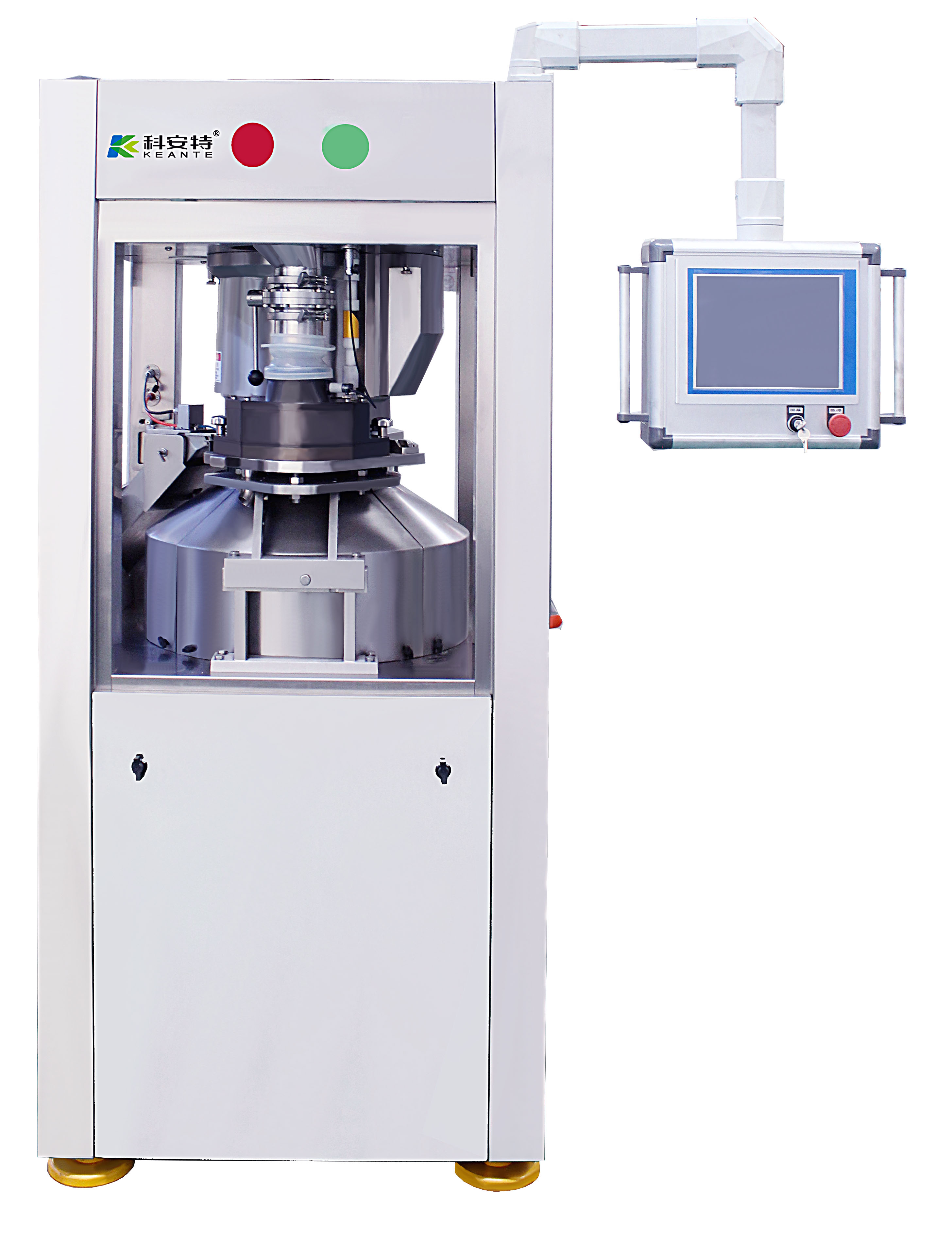

Tablet press FE35

GZP300-22

The test data can be directly applied to the production type tablet press.

download download-icon
Specificities
1. Pressure detection system upgrade.
2. Modular design of the whole machine, Convenient maintenance.
3. Double layered three bladed forced feeder for more uniform and stable feeding.
4. Equipped with a single tablet rejection option.
5. Meet GMP and FDA 21 CFR Part 11 requirements.
6. With explosion-proof configuration options.
7. There are remote control options, Man-machine isolation, safe production.
Dimension
900x1100x1850mm
Tablet output
92400 tablets/hour (max)
Tablet size
25mm（max）
Weight
2050kg
Tablet press FE35

GZP300-26

The test data can be directly applied to the production type tablet press.

download download-icon
Specificities
1. Pressure detection system upgrade.
2. Modular design of the whole machine, Convenient maintenance.
3. Double layered three bladed forced feeder for more uniform and stable feeding.
4. Equipped with a single tablet rejection option.
5. Meet GMP and FDA 21 CFR Part 11 requirements.
6. With explosion-proof configuration options.
7. There are remote control options, Man-machine isolation, safe production.
Dimension
900x1100x1850mm
Tablet output
109200 tablets/hour (max)
Tablet size
16mm（max）
Weight
approx. 2500kg, rotary table approx. 100kg
Tablet press FE35

GZP300-32

The test data can be directly applied to the production type tablet press.

download download-icon
Specificities
1. Pressure detection system upgrade.
2. Modular design of the whole machine, Convenient maintenance.
3. Double layered three bladed forced feeder for more uniform and stable feeding.
4. Equipped with a single tablet rejection option.
5. Meet GMP and FDA 21 CFR Part 11 requirements.
6. With explosion-proof configuration options.
7. There are remote control options, Man-machine isolation, safe production.
Dimension
900x1100x1850mm
Tablet output
134400 tablets/hour (max)
Tablet size
13mm（max）
Weight
approx. 2500kg, rotary table approx. 100kg
Tablet press FE35

GZP300-34

The test data can be directly applied to the production type tablet press.

download download-icon
Specificities
1. Pressure detection system upgrade.
2. Modular design of the whole machine, Convenient maintenance.
3. Double layered three bladed forced feeder for more uniform and stable feeding.
4. Equipped with a single tablet rejection option.
5. Meet GMP and FDA 21 CFR Part 11 requirements.
6. With explosion-proof configuration options.
7. There are remote control options, Man-machine isolation, safe production.
Dimension
900x1100x1850mm
Tablet output
142800 tablets/hour (max)
Tablet size
11mm（max）
Weight
approx. 2500kg, rotary table approx. 100kg
